18 monthes assurance, Engineers available to service machinery overseas, PP PE soft plastic film bag washing recycling machine

Working Flow of PP PE soft plastic film bag washing recycling machine:
Belt conveyor → Crusher (with water) → High speed friction washing machine → Floating washing machine(Can be hot washer) → High speed friction washing machine → Floating washing machine → dewatering machine → drying pipeline system → Silo→control cabinet

Function of PP PE soft plastic film bag washing recycling machine:
To crushing washing recycling the used, dirty waste PP PE films/bags, protect the environment, Avoid white pollution.
This recycling line is composed of crusher, cold & hot washing system, dewatering, drying, packing system, etc.
This PP PE waste plastic crushing, recycling and washing recycling machine line can easily wash and recycle waste PP PE films/bags. Waste and dirty PP PE films/bags can be processed step by step, by this recycling machine. It is special for washing PP PE films/bags. We can help to attach equipment at the end of the washing recycling line so that the completely dry flakes can be collected and packed directly after been washed.
The whole production line can designed based on how dirty the PP PE films/bags are, and make sure of the quality of the final products.
Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PP PE films/bags to be the PP PE granules material and in order to producing new PP PE products.

Description of PP PE soft plastic film bag washing recycling machine:
PP PE plastic washing recycling machine is widely used to washing recycling the used PP/PE plastic soft plastic. Such like shopping bags, packing films, garbage bags, woven bags, non-woven bags and films. This recycling machine can crushing washing and drying the dirty soft plastic into clean film flakes.
After plastic film/bag flakes cleaned, you can make them into pellets/granules with next process, which called plastic pelletizing machine.
This production line is high automatic operating and low consume, can save labor, save power and save water, easy to maintenance.
With advanced design, concepts and technologies to suit different status of waste plastic bags/films. This PP PE plastic recycling machine could layout as "L", “S” or "U" shape according different workshop.

The whole line includes
Belt Conveyor: The materials go into the crusher by the crawler belt, which is moved by inside scroll wheel.
Crusher: Crush the material.
Screw Loader: Put the flakes into the Hot washer to clean.
Hot Washer: If the bottle is very dirty, like oil, sand, it must be use hot washer.
Screw Loader: Put the flakes into the High-speed Friction Washer to clean.
High-speed Friction Washer: After crushing material from enters the mouth, through the high speed on the axis of the blade flap and spray water to the common function of good cleaning effect.
Floating Washer 1: It used in cleaning pet flakes, make the flakes cleaner and whiter. Also is the necessary equipment of the bottle and bottle cap.
Floating Washer 2: It used in cleaning pet flakes, make the flakes cleaner and whiter. Also is the necessary equipment of the bottle and bottle cap.
Dewatering: Rejection the water from the flakes, moisture content is less than 2%.
Drying Pipeline
Silo: Storage materials.
Electrical Control Cabinet



Parameters of PP PE soft plastic film bag recycling machine:

Plastic film bag recycling machine Photos for reference

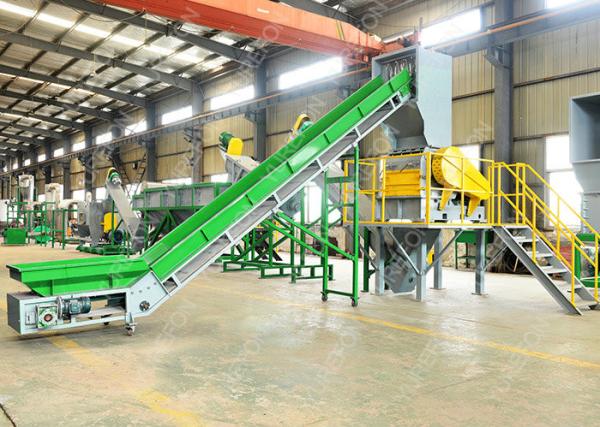

Belt conveyor and crusher

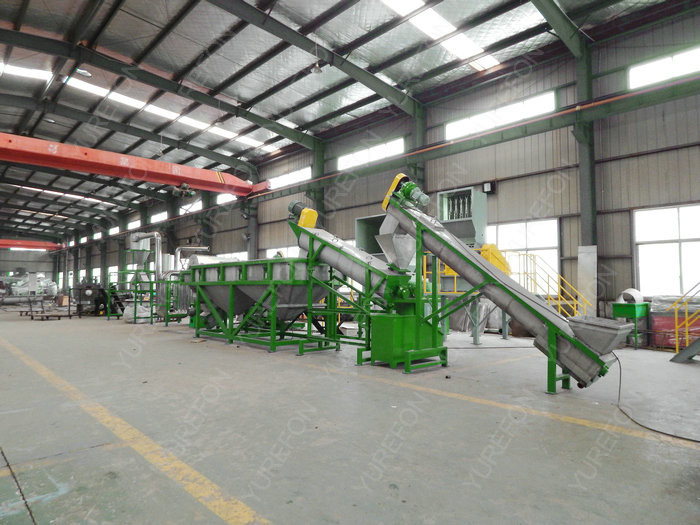

Screw feeder and friction machine

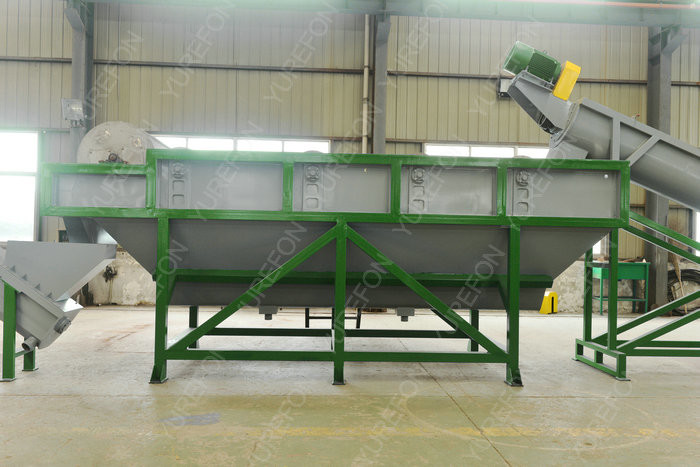

Floating washing tank machine

High speed friction washing machine

Drying pipe line systerm and silo hopper

Overview

After this Automatic PP PE Soft Plastic Film Washing Recycling Machine 150 KW Low Consume, our company also offer the following recycling lines of PP PE plastic granulating machine, that can make the PP PE flakes into PP PE granules.
