Plastic PVC+PMMA/Asa Wave/Glazed Roof Tile Extruder Making machine

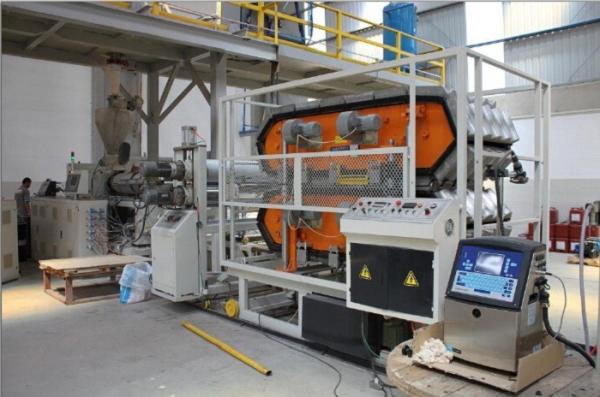

PVC glazed tile production line is in combination of conical twin screw and single screw extruder. The special designed screw and mold make the extrusion property more stable and the plasticizing performance better. The auxiliary machine line includes molding machine, automatic fixed-scale cutting machine, rack, haul off, etc. The extruder jointed the auxiliary unit by die can be a highly efficient production line to continuously produce PVC plastic glazed tiles. The products are widely applied to the building construction on the decorative requirements and the gallery in the public places. They have the characteristics of excellent corrosion resistance, tough texture, high strength, fine thermal insulation, environmental protection, etc.

Machine application:

1. Optional to adopt conical twin screw extruder and parallel twin screw extruder
2. Supply formula guide and staple raw material purchase
3. Professional analyzing and design by considering production cost and tile's performance
4. single layer or A+B / A+B+C /A+B+A layers available

5. Product Advantage:Anti-noisy, anti-erosion, heating resistance and water proof for simple construction

Machine list and function:

Type: A type

Material of die-head: 5CrNiMo steel

Effective width of T-die lip: depending on final product

Adjusting arrange of T-die thickness: 1.0-3.0mm

Final thickness of product: 0.8-3.0mm

Heater: stainless steel stick

Electroplate: T-die flow plane treatment by hard chrome plating, Thickness:0.02-0.05mm, Hardness: 60-65RocKWellc

Surface treatment by chrome plating,Thickness: 0.01-0.02mm

Method of material input: central square opening input

Method of Installation: flat extrusion install

T-die support:

Trolley and movable design

Pre-forming roller:

The shape and size according to final product

Material: stainless steel

Calibrator:

Material: high quality 45# steel

Treatment by polishing and hard chrome plated, Coating thickness: 0.04mm,

the shape and size according to sample or drawing

Cooling system: cooling water circulation & "U" structure design of water channel

Edge cutting:

Material: tooling steel

Adjustable design

Rubber haul-off:

Driving power: 2.2KW

Speed control by: frequency inverteeer

Line speed:3m/min

Guillotine cutter:

Cutting mothed: Mechanical

NO DUST cutting

Protection system:

With cover and emergency device assure safely operation

Calibration machine with full set of male and female calibrator

Mould material: cast Alumium

The size accroding to final product

Heating by electric resistance

Press control by hydraulic or pneumatic

Other technical data:

YUREFON MACHINERY CO.,LTD is set up in 2000. Is part of SINO-TECH GROUP（INCLUDING TONGDA MACHINERY,VICTOR MACHINERY&MOULD,YUREFON MACHINERY）is specially for the plastic extrusion and plastic recycling machine. YUREFON MACHINERY CO.,LTD is continuously dedicates to the research & development and marketing of various types of plastic extrusion machine and plastic recycling machinery. The Customer is always enjoy the expertise and professional-made solutions offered by the companies in the group. Over 300 employees of the company（which including production department，Techinical department, sales department, After sales department,administration department，finance department) can guarantee our machine works on high level of innovation, durability and operational reliability.

We Have Provided Our Machine To Many Famous Plastic Product Enterprises Company In China And More Than 80 Countries In The Southeast Asia, Mid-East,South America,North America, Europe Union,Africa. In Order To Improve The Machine Quality Continuously. We Perfect Our Quality Management System And Already Passed The Certificate of ISO 9001-2008 And CE.Warmly Welcome The Friends From All The World To The Company And Develop Together And Create New Future.

Yurefon have the standard machine producing workshop plant. Our proudct covers PET plastic bottle washing recycling machine, PET plastic flakes pelletizing granulator machine, PE PP plastic film washing recycling machine, PE PP plastic film pelletizing recycling machine, PP HDPE plastic bottle crushing washing recycling machinne, PP PE plastic flakes pelletizing granulating recycling machine, waste plastic crusher machine, wide use single shaft shredder machine, double shaft shredder machine, PP PE pipe extrusion line, PVC pipe extrusion line, HDPE dimpled drainage sheet extrusion line, and related auxiliary machinery.

Yurefon ​have mature technology and technics for plastic recycling machine and the plastic extrusion machine , we can help our customers for producing line layout and producing flow arrangement. Our machines' quality is good and reliable, the working lifespan is more longer . You are warmly welcome to establish long term cooperation relationship with us.

Yurefon with a complete sales system, our plastic recycling machine and plastic extrusion machine have been exported to Europ, South America, Nouth America , Mid East, Africa and Asia countries. The service covers product analysis, project sonsultation, manufacturing follow-up, exporting and after sales service.

Yurefon keep supply the high quality machine, that customer's praise is our biggest pursuit.
