Brand Name : | YUREFON |
Model Number : | Pulverizer |
Certification : | CE SGS |
Price : | Negotiable |
Payment Terms : | L/C, T/T, Western Union, MoneyGram |
Supply Ability : | 300 SETS/YEAR |
Delivery Time : | 30DAYS |

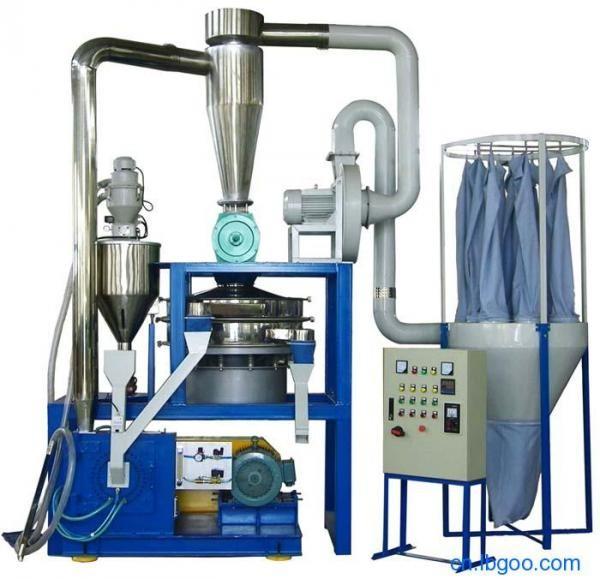

Waste Plastic grinder/Plastic pulverizer machine/PVC PE Plastic Pulverizer/Plastic Milling Machine
Description of Waste Plastic grinder/pulverizer machine/PVC PE Plastic Pulverizer/Plastic Milling Machine:
MF series Plastic Mill is a prefect machine for processing and
grinding thermoplastics material, such as PVC, PE, PP, EVA, PLA,
ABS etc, with high output and thin powder.
The MF series automatic plastic grinding mill is disc-type plastic
grinding mill series, which has the advantages of high-yield and
low-power.
Characteristics of Waste Plastic grinder/pulverizer machine/PVC PE
Plastic Pulverizer/Plastic Milling Machine:
The machine is our latest self-developed grinding mill, its features are as follows:
1. Compared with similar grinders, its output is greatly improved (increased by 20%-50%) under the same power. It is energy-saving.
2. The dust collector is added to effectively reduce dust pollution.
3. The discharging of the main fan reduces labour intensity of operating workers.
4. The door cover of the host can be opened for convenience of maintenance and replacement of cutters.
5. Wind and water cooling system are adopted to decrease the working temperature inside the machine body, so the grinded material uneasy for denaturalization and also conducive to grind heat sensitivity plastics. For example the part of PE and ABS can be grinded by this machine.
Specification of Waste Plastic grinder/pulverizer machine/PVC PE Plastic Pulverizer/Plastic Milling Machine:
Model | YRMF-400 | YRMF-500 | YRMF-600 | YRMF-800 |
Main Motor Power(kw) | 30 | 37 | 45 | 75 |
Draft Fan Power(kw) | 3 | 4 | 4 | 5.5 |
Vibrator Power(kw) | 0.75 | 1.1 | 1.1 | 0.75*2 |
Feeder Power(kw) | 0.55 | 0.55 | 0.75 | 0.75 |
Max. Output(kg/h) | 120 | 250 | 350 | 450 |
Dimensions(mm) | 2200*1500*1600 | 3000*2800*3900 | 3200*3000*4200 | 3500*3200*4500 |
Weight(kg) | 1100 | 1680 | 2280 | 2880 |
![]() |
