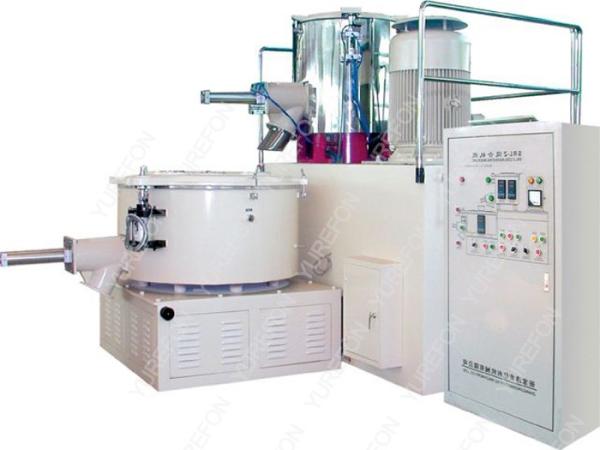

    800 Kg / H PVC Mixer Machine High Speed , SRL - Z Series Plastic Powder Mixer Machine

    SRL-Z series Frequency Inverter Control Plastic Powder Mixer Machine, Mixing Machine

    Descrition of SRL-Z series Frequency Inverter Control Plastic Powder Mixer Machine, Mixing Machine​:
    1, the inside barrel of Heating & Cooling Mixer are made of stainless steel; the outside baiTel of heating Mixer are also in stainless steel, It can resist the corruption of DOP and there is a 550mmstainless steel material adding bucket up the pot cover.
    2, The Heating Mixer is equipped with 3-pc – type blades : The cooling Mixer is equipped with carrying – pole type blades.
    3, Electric beating device:equipped with temperature tesing device & warm accuse table.
    4, The Main roller is sealed in 88888
    5, the digital display (made in Changzhou)
    6, Siemens contractor
    7, the opening & material unloading of the cover adopts liquid pressure control system.
    8, decompression starting device : It will decompress the electirc pressure when we start the machine ,It can protect the electric net.
    9, Standard electric box 1 pc; step 1 pc , banisters bandrail 1 unit, air compressor machine 1 pc


    Applications of SRL-Z series Frequency Inverter Control Plastic Powder Mixer Machine, Mixing Machine​:
    SRL-ZA series mixing unit is appliable for mixing,colouring and drying of various resin such as poly,PE,PP,PVC polypropylene,poly chloride etc,and in the process of drying and volatilization of engineering plastics such as ABS PC etc before forming and processing as well as in the mixing of phenolic resin.
    The unit combines heat mixing and cool mixing together.The materials after heat mixing can be gotting into cool mixer for cooling automatically,exhausts remaining gass and avoids agglomerates.
    It is an ideal equipment for plastics mixing.

    Competitive Advantage:
    1. composed of high speed hot mixer,cold mixer...
    2. mixing fast and even
    3. easily cleaning,


    SRL-Z series Frequency Inverter Control Plastic Powder Mixer Machine, Mixing Machine​
    Main Technical Parameter ( Vertical Cooler) for your reference:

    Model

    SRL-Z100/200

    SRL-Z200/500

    SRL-Z300/600

    SRL-Z500/1000

    SRL-Z800/1600

    Total volume (L)

    100/200

    200/500

    300/600

    500/1000

    800/1600

    Effective Volume (L)

    65/130

    150/320

    200/360

    375/650

    600/1024

    Rotating Speed (RPM)

    650/1300-180

    475/950-87

    475/950-87

    430/860-60

    357/714-50

    Mixing time (Min.)

    8-10

    8-10

    8-12

    8-10

    8-12

    Motor power (KW)

    14/22-7.5

    30/42/11

    40/55/11

    55/75/15

    83/110/22

    Overall dimension(mm)

    2500*2000*2200

    4580*2240*2470

    4800*2640*2480

    5600*3000*3100

    6230*4230*4480

    Weight(kg)

    2500

    3600

    4500

    5800

    8300
