Ecofriendly Paper Straw Manufacturer, Paper Straw Making Machine for Sale
This paper making machine is suitable for producing different sizes of paper straws and very small paper tubes. It integrates raw material feeding, guling, winding and cutting on one time.
The man-machine interface is a touch screen, adopted with PLC controller, simple setting and convenient operation.
main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.
Cutting section adopted with numerical multi-blades cutting system, can make any size paper straw, like the size 6mm,8mm,10mm,etc.
Servo synchronous tracking cutting system makes it high precision and multi-blades cutting makes time-saving efficiency.
Machine body and main spare parts made of stainless steel. Ensure the hygiene and environmental protection of the products.

​Video of Ecofriendly Paper Straw Manufacturer, Paper Straw Making Machine for Sale​​​​:

Q&A about Ecofriendly Paper Straw Manufacturer, Paper Straw Making Machine for Sale:

1, What type of material is used to make paper straw?

White paper with Food grade: 118 GSM and 63 GSM ( Please buy it as 2:1 which means if buy 2 rolls 118GSM then 63 GSM buy 1 roll, as the paper straw with 3 layer, inner 2 layer is 118GSM)
2, What type of glue is used to make the paper straw? We want to know technical spec of the glue we need and some quantity to produce here in my factory.

Name: WATER BASED ADHESIVE

Must is by FDA approved ( Food Grade) important.

Content Of Non Volatile Matter: ≥46-50%

Viscosity: 2950~3100

Ph: round 5.2

Remnants VAC: ≤0.09%

Particle Diameter: 0.9um

Dilution Stability: ≤3.4%

Minimum Film Forming Temperature: ≤0.9℃

Price: round 2200usd each ton

Different type glue price also will a little different.

High Speed Paper Straw Machine Function Brief:

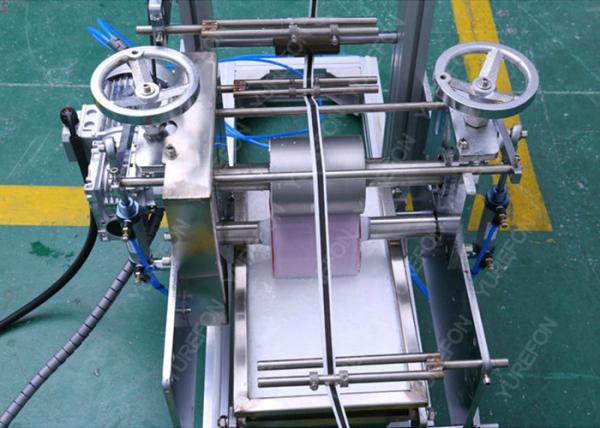

1. Stainless Steel Glue Unit

Choose gluing single side or double sides. The drinking straws are glued evenly and stuck firmly. ( Glue by WATER BASED ADHESIVE which FDA approved Food Grade)
2. Spiral winding unit , specialized operation system, Belt tension device (hand-wheel drive).

a. Send the paper to the winding unit .

b. Wind the paper shape to straw by winding system
3. Silicone oil lubrication system

Add silicone oil on the paper which for paper running smooth
4. Multi-knife cutting system and spiral rolling mechanism

Multi-blades cutting system is controlled by encoder. Servo synchronous tracking cutting system makes it higher precision and multi-knife cutting makes it higher efficiency.
5. Using PLC control and touch screen

With PLC control and touch screen, working data can be preset on the control panel and it is easy for operation.
6.Using servo motor control system which can track the cutting length with high precision and high efficiency.
7. Paper straw collecting system : collect the straws automatically and row them tidily in the container (By Client choose).


Yurefon paper straw making machine as a ideal equipment for paper straws, with a high speed and stable capacity it is specially dedicated to spiral wind paper tubes of very small diameters.
The papaer straw making machine easy operating, and low maintenance cost and great flexibility make this machine perfectly suited for all paper tube manufacturer.
Yurefon all machines equipped with top quality famous electrical parts and mechanical parts, such as Schneider, Siemens, Airtac etc. We also accept fully customizable according to your request.

YUREFON MACHINERY CO.,LTD is set up in 2000. Is part of SINO-TECH GROUP（INCLUDING TONGDA MACHINERY,VICTOR MACHINERY&MOULD,YUREFON MACHINERY）is specially for the plastic extrusion and plastic recycling machine. YUREFON MACHINERY CO.,LTD is continuously dedicates to the research & development and marketing of various types of plastic extrusion machine and plastic recycling machinery. The Customer is always enjoy the expertise and professional-made solutions offered by the companies in the group. Over 300 employees of the company（which including production department，Techinical department, sales department, After sales department,administration department，finance department) can guarantee our machine works on high level of innovation, durability and operational reliability.

We Have Provided Our Machine To Many Famous Plastic Product Enterprises Company In China And More Than 80 Countries In The Southeast Asia, Mid-East,South America,North America, Europe Union,Africa. In Order To Improve The Machine Quality Continuously. We Perfect Our Quality Management System And Already Passed The Certificate of ISO 9001-2008 And CE.Warmly Welcome The Friends From All The World To The Company And Develop Together And Create New Future.

Yurefon have the standard machine producing workshop plant. Our proudct covers PET plastic bottle washing recycling machine, PET plastic flakes pelletizing granulator machine, PE PP plastic film washing recycling machine, PE PP plastic film pelletizing recycling machine, PP HDPE plastic bottle crushing washing recycling machinne, PP PE plastic flakes pelletizing granulating recycling machine, waste plastic crusher machine, wide use single shaft shredder machine, double shaft shredder machine, PP PE pipe extrusion line, PVC pipe extrusion line, HDPE dimpled drainage sheet extrusion line, and related auxiliary machinery.

Yurefon ​have mature technology and technics for plastic recycling machine and the plastic extrusion machine , we can help our customers for producing line layout and producing flow arrangement. Our machines' quality is good and reliable, the working lifespan is more longer . You are warmly welcome to establish long term cooperation relationship with us.

Yurefon with a complete sales system, our plastic recycling machine and plastic extrusion machine have been exported to Europ, South America, Nouth America , Mid East, Africa and Asia countries. The service covers product analysis, project sonsultation, manufacturing follow-up, exporting and after sales service.

Yurefon keep supply the high quality machine, that customer's praise is our biggest pursuit.
